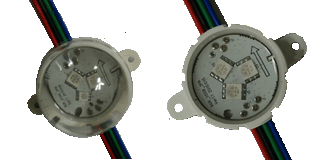

TPLM-48C06 |
![]() |
||
![]() |
|||
![]() |
|||
![]() |
|||
LED Q'ty |
3 |
||
![]() |
|||
Input Voltage |
DC 12V |
||
![]() |
|||
Operationg Current |
68mA |
||
![]() |
|||
Power Consumption |
0.8W |
||
![]() |
|||
Dimension |
38.0 Φ * 51mm(D / Max) * 33mm(H) |
||
![]() |
|||
Operating Temperature |
-10 ~ 70 ℃ |
||
![]() |
|||
Case |
ABS |
||
![]() |
|||
PCB |
FRP4 |
||
![]() |
|||
Wire standard |
AWG#18 |
||
![]() |
|||
Beam Angle |
120℃ |
||
![]() |
|||
Lighting Color |
48bit Full Color |
||
![]() |
|||
Transmit rate |
SYNC mode |
||
![]() |
|||
Module Pitch |
125mm |
||
![]() |
|||
![]() |
